| Camera | |
|---|---|
| Image Sensor | 1/3″ Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | 4 mm @ F1.6, viewing angle: 41° (vertical), 76° (horizontal), 90° (diagonal) |
| PT Angle | Pan: 350°, Tilt: 90° |
| Minimum Illumination | 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories) |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto switch |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Black & White Night | 30m / 98ft |
| Video & Audio | |
| Max Resolution | 3K (2880 × 1620) |
| Frame Rate | Self-Adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| H.265 Type | Main Profile |
| Video Bit Rate | Ultra-HD; Hi-Def; Standard. Adaptive bit rate. |
| Audio Bit Rate | Self-adaptive |
| Max. Bitrate | 2.5 Mbps |
| Network | |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz, 5.15 GHz ~ 5.25 GHz, 5.25 GHz ~ 5.35 GHz, 5.47 GHz ~ 5.725 GHz |
| Channel Bandwidth | EU LTE-FDD：B1/B3/B5/B7/B8/B20/B28
LA LTE-FDD：B2/B3/B4/B5/B7/B8/B28/B66 |
| Wired Network | RJ45 × 1 (10 M / 100 M Adaptive Ethernet Port) |
| Functions | |
| Smart Alarm | AI-Powered Human / Vehicle Shape Detection |
| Auto Tracking | Supports |
| Customized Alert Area | Supports |
| Two-way Talk | Supports |
| Preset Locations | Supports |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark, RTMP |
| Storage | |
| Local Storage | Supports microSD card (max. 512 GB) |
| Cloud Storage | Supports EZVIZ CloudPlay storage (subscription required) |
| General | |
| Operating Conditions | -30°C to 50°C ( -22 °F to 122 °F ) Humidity 95% or less (non-condensing) |
| IP Grade | Weatherproof design IP66 |
| Power Supply | DC 12V/1A |
| Power Consumption | MAX. 12W |
| Dimensions | 100 × 140 × 140 mm (3.94 × 5.51 × 5.51 inch) |
| Packaging Dimensions | 150 × 160 × 194 mm (5.91 × 6.3 × 7.64 inch) |
| Weight | Net Weight: 550 g (19.4 oz)
With Package: 994 g (35.06 oz) |
| In the box | |
| In the box | – H8c Pro 4G Camera |
| – Drill Template | |
| – Screw Kit | |
| – Waterproof Kit | |
| – Power Adapter | |
| – Regulatory Information × 2 | |
| – Quick Start Guide | |
| Certifications | |
| Certifications | CE / WEEE / RoHS / REACH / UL |

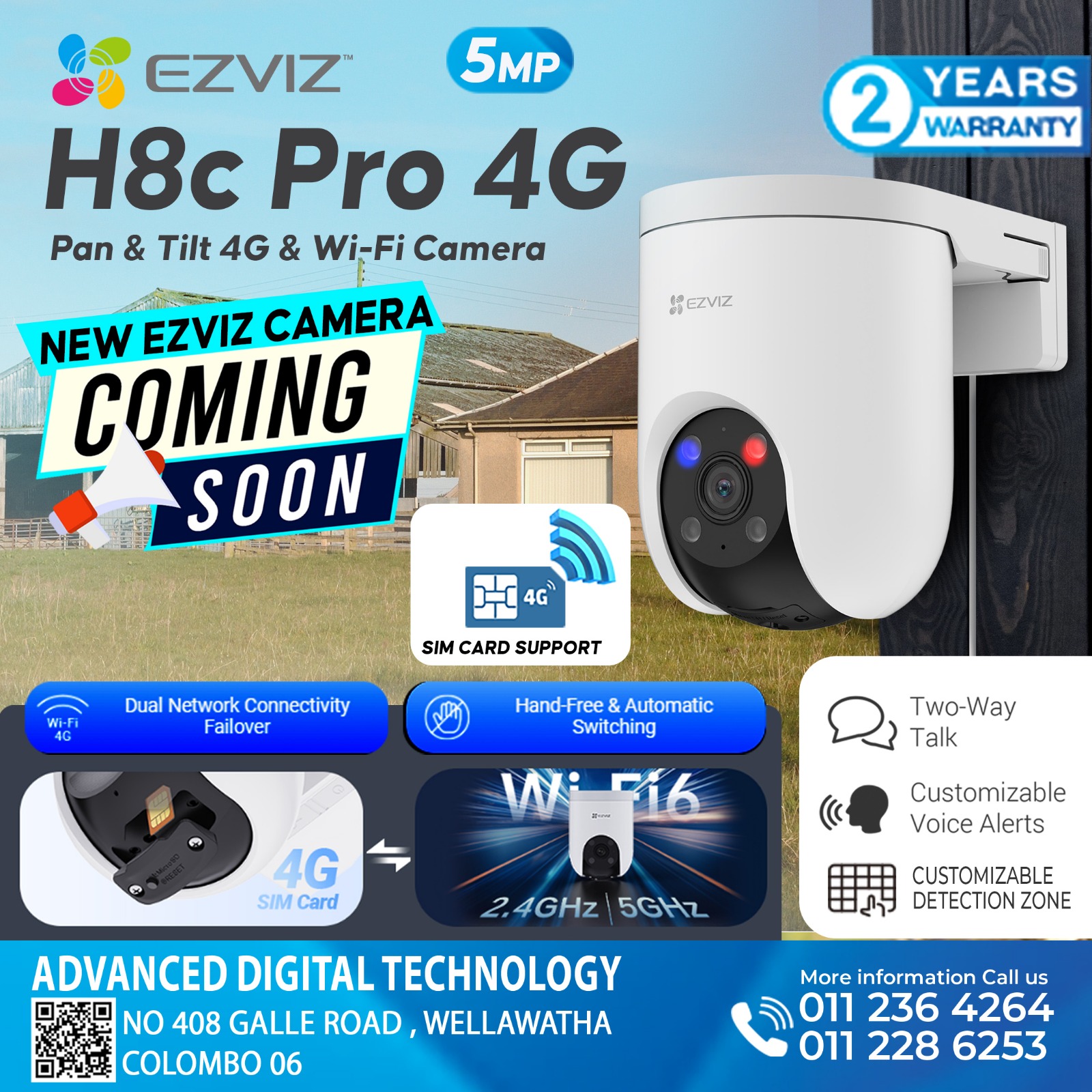

H8c Pro 4G
Key Features
- Two-Way Talk
- Weatherproof Design
- Pan-Tilt Design for a Panoramic View
- AI-Powered Human / Vehicle Shape Detection
- Dual Connectivity With 4G and Wi-Fi
- One-Click Return to Pre-Set Directions
