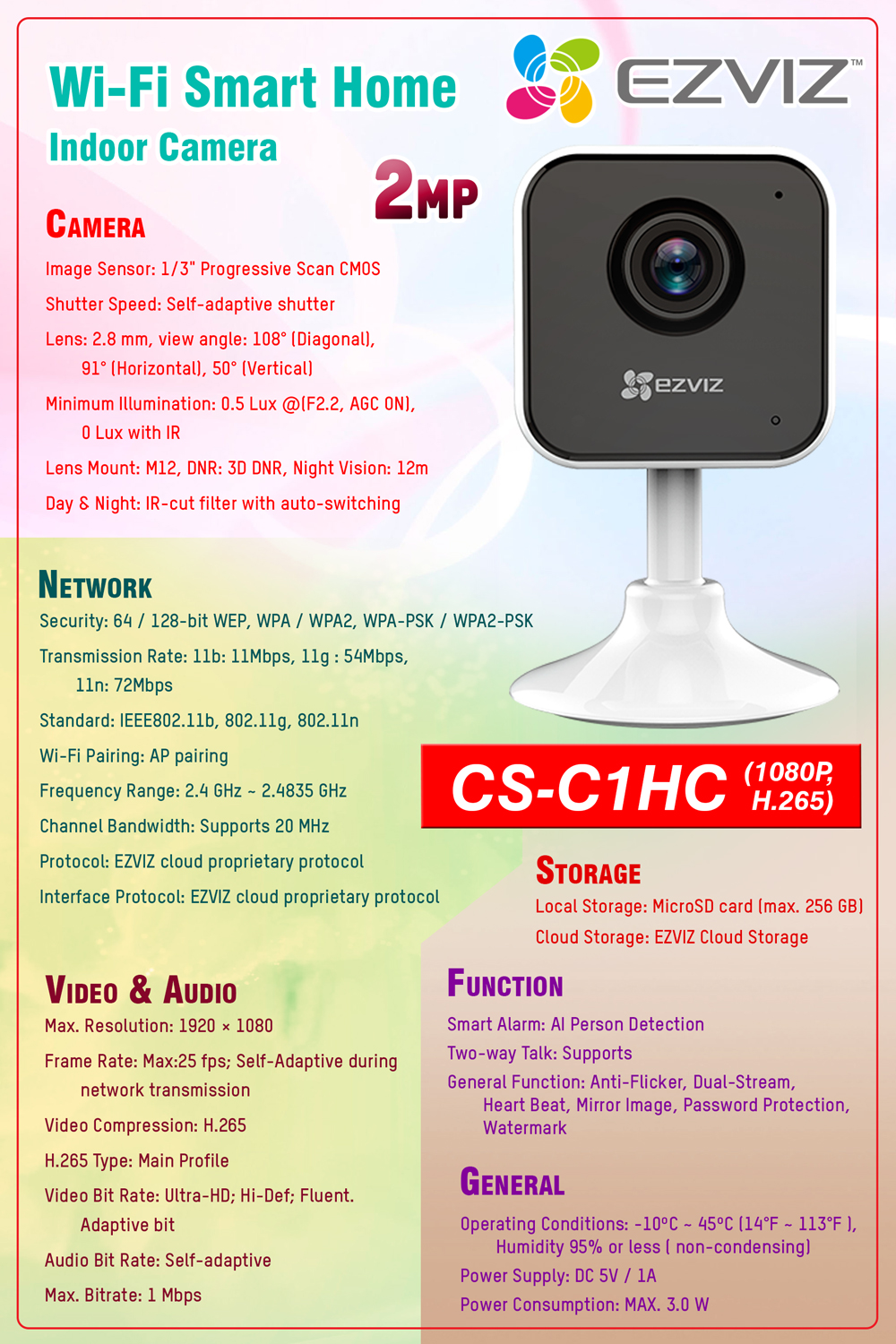

Datasheet: CS-C1HC (1080P, H.265)
User Manual: CS-C1HC (1080P, H.265)
| Model |
CS-C1HC (1080P,H.265) |
|---|---|
Camera |
|
| Image Sensor | 1/3″ Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | 2.8 mm, view angle: 108° (Diagonal), 91° (Horizontal), 50° (Vertical) |
| Minimum Illumination | 0.5 Lux @(F2.2, AGC ON), 0 Lux with IR |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto-switching |
| DNR | 3D DNR |
| Night Vision | 12 m |
Video & Audio |
|
| Max. Resolution | 1920 × 1080 |
| Frame Rate | Max: 25 fps; Self-Adaptive during network transmission |
| Video Compression | H.265 |
| H.265 Type | Main Profile |
| Video Bit Rate | Ultra-HD; Hi-Def; Fluent. Adaptive bit. |
| Audio Bit Rate | Self-Adaptive |
| Max. Bitrate | 1 Mbps |
Function |
|
| Smart Alarm | AI Person Detection |
| Two-way Talk | Supports |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark |
Network |
|
| Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK |
| Transmission Rate | 11b: 11Mbps, 11g : 54Mbps, 11n: 72Mbps |
| Wi-Fi Pairing | AP pairing |
| Protocol | EZVIZ cloud proprietary protocol |
| Interface Protocol | EZVIZ cloud proprietary protocol |
Storage |
|
| Local Storage | MicroSD card (Max. 256GB) |
| Cloud Storage | EZVIZ Cloud Storage |
General |
|
| Operating Conditions | -10 ºC ~ 45 ºC (14 °F ~ 113 °F ), Humidity 95% or less ( non-condensing) |
| Power Supply | DC 5V / 1A |
| Power Consumption | MAX. 3.0 W |
| Dimensions | 53.89 x 53.89 x 90.3 mm (2.12 x 2.12 x 3.56 inch) |
| Packaging Dimensions | 91.5 x 87.5 x 149 mm (3.60 x 3.44 x 5.87 inch) |
| Net Weight | 78 g (2.75 oz) |
| Weight (With Package) | 305 g (10.76 oz) |
In the box: |
|
| In the box: | – C1HC Camera – USB Cable – 3-Meter Power Adapter – Foam Sticker – Metal Plate – Base – Drill Template – Screw Kit – Regulatory Information – Quick Start Guide |
Certifications: |
|
| Certifications: | FCC / UL / CE / RoHS / WEEE / REACH |
The CS-C1HC (1080P, H.265) is a compact security camera that gets the job done beautifully and its very easy to Install. The Camera features the advanced H.265 video compression technology to achieving better video quality.
